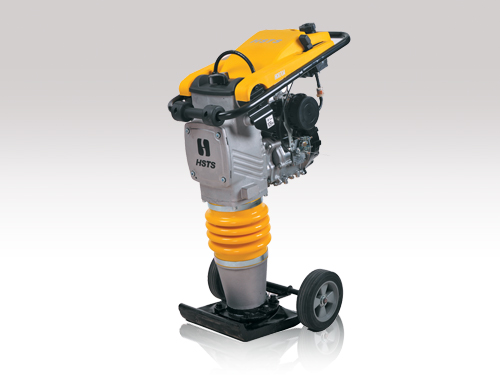

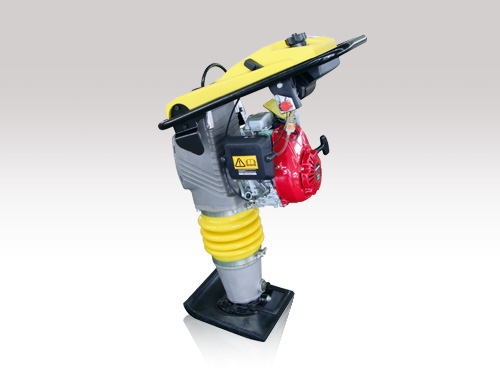

Product Name:Rammer HCR70A

- Most ideal for finishing asphalt,sand and sloping surfaces;
- Holding handle and trolley,easy to use and transport;
- Base plate with self-cleaning function;
- Innovation Design.

STRUCTURE:
The torque generated by engine or electric motor is transferred to reciprocating motion by crank gear, which will pass it on vibrating foot (shoe) through spring cylinder.
FEATURES:
It has strong impact force though it is small and light.
Multipurpose use with maneuverability.They are used for confined area, trench work, backfill and repairing work on asphalt.
Suitable especially for compacting the roadbed with low water content that heavy vibro compactor could not work.

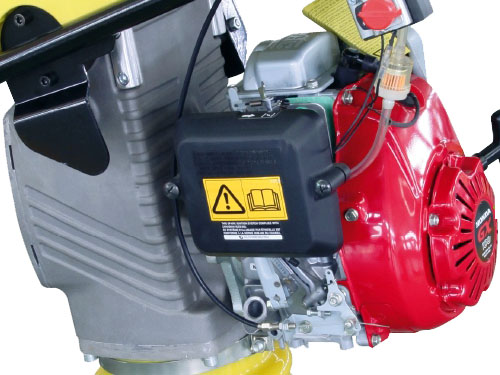

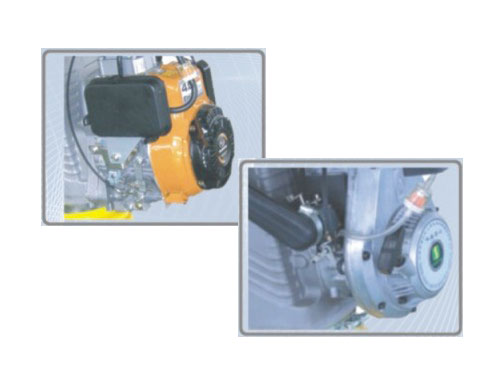

Tamping rammer with  Honda engine ,Robin engine and Cinese engine

The main technical parameters

Model

HCR70A

HCR70A-1

HCR70

HCR70B

Impact Number (number/min)

700

1700

700

700

Leep Height (mm)

65

65

65

70

Power (kw/r/min)

2.2/4000

2.2/4000

1.8/4400

2.6/3600

Net Weight (Kg)

75

75

70

80

Package Dimension (mm)

1080×410×750

1080×410×750

1080×410×750

1080×410×750

Mating Power

HONDA GX100

156FC

1E45F-3(Two Stroke)

Robin EH-12D

Impact Energy (Kn)

15

15

14

16

Walking Speed (m/min)

17

17

17

17

Base Dimension (mm)

280×335

280×335

280×335

280×335

Gross Weight (Kg)

92

92

87

100
