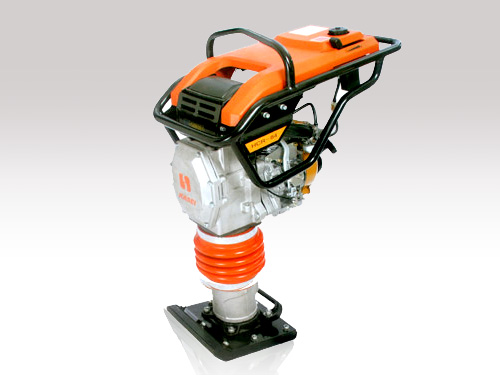

Tamping rammer with Subaru robin EH-12D engine
High percussion rate, powerful stroke, high stroke energy, fast advance travel,maximum productivity, performance and durability,Compact design offers easy operation, especially in trenches
STRUCTURE:

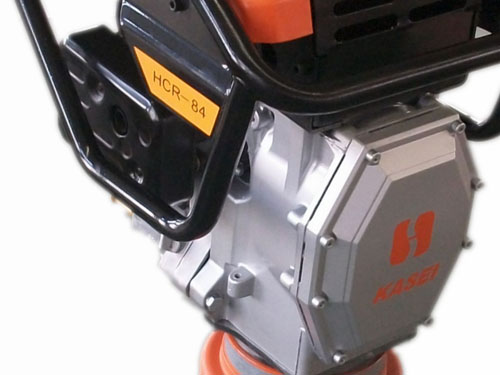

The torque generated by engine or electric motor is transferred to reciprocating motion by crank gear, which will pass it on vibrating foot (shoe) through spring cylinder.
FEATURES:
It has strong impact force though it is small and light.

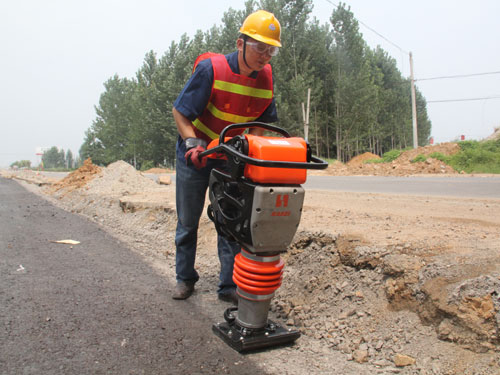

Multipurpose use with maneuverability.They are used for confined area, trench work, backfill and repairing work on asphalt.
Suitable especially for compacting the roadbed with low water content that heavy vibro compactor could not work.
Model | HCR84 |
Impact Number(number/min) | 650-700 |
Leep Height(mm) | 80 |
Power(kw/r/min) | 2.6/3600 |
Net Weight(kg) | 83 |
Dimension(mm) | 1140×470×820 |
Mating Power Robin | EH-12D |
Impact Energy(Kn) | 16 |
Travel Speed(m/min) | 17 |
Base Dimension(mm) | 280×340 |
Gross Weight(Kg) | 103 |
